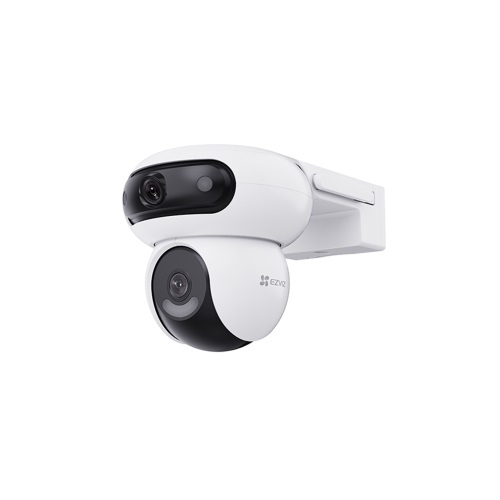

EZVIZ CS-H90 Dual 4MP Outdoor Camera – Specification
General Information | ||
| Image Sensor | 1/3″ Progressive Scan CMOS | |
| Effective Pixels | 4MP+4MP | |
| Max. Resolution | 2K+ (2560 × 1440) | |
| Frame Rate | Self-adaptive during network transmission | |
| Lens | Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° | |
| Pan & Tilt | Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle ) Bottom Lens: Pan: 324°, Tilt: 90° | |
| IR Distance | 30 m (98 ft) | |
| Field of View | Diagonal 110°, Horizontal 96°, Vertical 54° | |
| Min. Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) | |
| Video Compression | H.265 / H.264 | |
| Bit Rate | Quad HD; Full HD; Standard adaptive bit rate | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Smart Alarm | Motion Detection, Human Detection, Human Tracking, Noise Detection, Auto Patrol | |
| Button | Reset Button | |
| Storage Type | Micro SD card slot (Max. 512GB) | |
| Others | Weatherproof Design Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark | |
Network & Connectivity | ||
| Wireless Network | Wi-Fi Standard-IEEE802.11b, 802.11g, 802.11n Frequency Range-2.4 GHz ~ 2.4835 GHz Channel Bandwidth-Supports 20MHz Security-WPA-PSK/WPA2-PSK Transmission Rate-11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps Wi-Fi Pairing-AP paring Protocol EZVIZ-cloud proprietary protocol Interface Protocol-EZVIZ cloud proprietary protocol | |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) | |
Power | ||
| Power Supply | IP65 + 2h rainstorm | |
| Power Consumption | MAX. 18W | |
Physical Specification | ||
| Color | White | |
| Dimension | 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch) | |
| Weight | 1203 g (42.43 oz) | |
| Operating Temperature | -30°C to 50°C ( -22 °F to 122 °F ) | |
| Others | Humidity 95% or less (non-condensing) | |
Warranty Information | ||
| Warranty | 01 Year Warranty | |
